Cantrex Aluminium Profiles

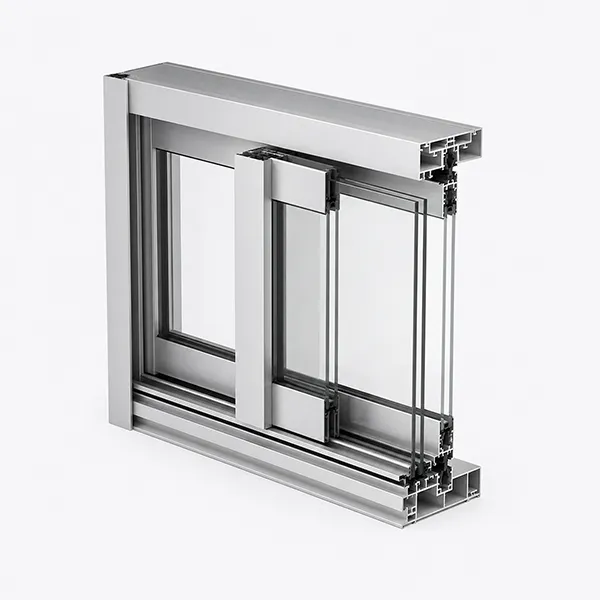

Available Sliding Window Sections Profiles
Browse Cantrex aluminium sliding window sections profiles by die number, dimension, thickness and weight. Select your required finish, length and quantity to calculate the price instantly.
| Image | Die No | A | B | T | Weight | Select Finish & Length | Qty | Price | Action |
|---|---|---|---|---|---|---|---|---|---|
|
HB050
A 0.406"
B 2.593"
T 0.062"
Weight 0.280 lb/ft
|
0.406" | 2.593" | 0.062" | 0.280 lb/ft |
|
$7.08 | ||
|
HB051
A 0.312"
B 2.30"
T 0.062"
Weight 0.280 lb/ft
|
0.312" | 2.30" | 0.062" | 0.280 lb/ft |
|
$7.08 | ||
|
HB052
A 0.785"
B 1.475"
T 0.056"
Weight 0.235 lb/ft
|
0.785" | 1.475" | 0.056" | 0.235 lb/ft |
|
$5.95 | ||
|
HB053
A 1.00"
B 3.625"
T 0.062"
Weight 0.524 lb/ft
|
1.00" | 3.625" | 0.062" | 0.524 lb/ft |
|
$13.26 | ||
|
HB054
A 1.11"
B 4.125"
T 0.062"
Weight 0.332 lb/ft
|
1.11" | 4.125" | 0.062" | 0.332 lb/ft |
|
$8.40 | ||
|
HB055
A 1.11"
B 4.125"
T 0.062"
Weight 0.514 lb/ft
|
1.11" | 4.125" | 0.062" | 0.514 lb/ft |
|
$13.00 | ||
|
|
HB056
A 1.11"
B 4.062"
T 0.062"
Weight 0.509 lb/ft
|
1.11" | 4.062" | 0.062" | 0.509 lb/ft |
|
$12.88 | ||
|
HB057
A 1.125"
B 5.656"
T 0.062"
Weight 0.746 lb/ft
|
1.125" | 5.656" | 0.062" | 0.746 lb/ft |
|
$18.87 | ||
|
HB058
A 0.687"
B 3.50"
T 0.062"
Weight 0.573 lb/ft
|
0.687" | 3.50" | 0.062" | 0.573 lb/ft |
|
$14.50 | ||
|
HB059
A 1.375"
B 0.890"
T 0.062"
Weight 0.350 lb/ft
|
1.375" | 0.890" | 0.062" | 0.350 lb/ft |
|
$8.86 | ||
|
HB060
A 1.452"
B 1.125"
T 0.062"
Weight 0.554 lb/ft
|
1.452" | 1.125" | 0.062" | 0.554 lb/ft |
|
$14.02 | ||
|
HB061
A 1.062"
B 0.394"
T 0.093"
Weight 0.159 lb/ft
|
1.062" | 0.394" | 0.093" | 0.159 lb/ft |
|
$4.02 | ||
|
HB062
A 0.500"
B 1.206"
T 0.090"
Weight 0.181 lb/ft
|
0.500" | 1.206" | 0.090" | 0.181 lb/ft |
|
$4.58 | ||
|
HB063
A 0.890"
B 2.438"
T 0.062"
Weight 0.510 lb/ft
|
0.890" | 2.438" | 0.062" | 0.510 lb/ft |
|
$12.90 | ||
|
HB063
A 1.032"
B 1.937"
T 0.062"
Weight 0.487 lb/ft
|
1.032" | 1.937" | 0.062" | 0.487 lb/ft |
|
$12.32 | ||
|
HB094
A 1.187"
B 1.500"
T 0.062"
Weight 0.429 lb/ft
|
1.187" | 1.500" | 0.062" | 0.429 lb/ft |
|
$10.85 | ||
|
HB095
A 0.980"
B 2.297"
T 0.062"
Weight 0.529 lb/ft
|
0.980" | 2.297" | 0.062" | 0.529 lb/ft |
|
$13.38 | ||
|
|
HB096
A 1.114"
B 1.761"
T 0.062"
Weight 0.408 lb/ft
|
1.114" | 1.761" | 0.062" | 0.408 lb/ft |
|
$10.32 | ||
|
|
HB097
A 1.160"
B 1.275"
T 0.055"
Weight 0.330 lb/ft
|
1.160" | 1.275" | 0.055" | 0.330 lb/ft |
|
$8.35 | ||
|
|
HB098
A 0.875"
B 1.390"
T 0.062"
Weight 0.245 lb/ft
|
0.875" | 1.390" | 0.062" | 0.245 lb/ft |
|
$6.20 | ||
|
|
HB099
A 0.875"
B 1.590"
T 0.062"
Weight 0.238 lb/ft
|
0.875" | 1.590" | 0.062" | 0.238 lb/ft |
|
$6.02 | ||
|
|
HB100
A 0.479"
B 1.180"
T 0.090"
Weight 0.162 lb/ft
|
0.479" | 1.180" | 0.090" | 0.162 lb/ft |
|
$4.10 | ||
|
|
HB117
A 1.200"
B 3.360"
T 0.094"
Weight 0.615 lb/ft
|
1.200" | 3.360" | 0.094" | 0.615 lb/ft |
|
$15.56 | ||
|
|
HB125
A 0.896"
B 2.100"
T 0.062"
Weight 0.400 lb/ft
|
0.896" | 2.100" | 0.062" | 0.400 lb/ft |
|
$10.12 | ||
|
|
HB127
A 1.123"
B 3.768"
T 0.062"
Weight 0.588 lb/ft
|
1.123" | 3.768" | 0.062" | 0.588 lb/ft |
|
$14.88 | ||
|
|
HB128
A 0.849"
B 3.609"
T 0.060"
Weight 0.607 lb/ft
|
0.849" | 3.609" | 0.060" | 0.607 lb/ft |
|
$15.36 | ||
|
|
HB129
A 1.000"
B 3.828"
T 0.062"
Weight 0.408 lb/ft
|
1.000" | 3.828" | 0.062" | 0.408 lb/ft |
|
$10.32 | ||
|
|
HB130
A 0.890"
B 2.100"
T 0.062"
Weight 0.485 lb/ft
|
0.890" | 2.100" | 0.062" | 0.485 lb/ft |
|
$12.27 | ||
|
|
HB131
A 1.500"
B 1.345"
T 0.062"
Weight 0.408 lb/ft
|
1.500" | 1.345" | 0.062" | 0.408 lb/ft |
|
$10.32 | ||
|
|
HB132
A 1.014"
B 1.892"
T 0.062"
Weight 0.476 lb/ft
|
1.014" | 1.892" | 0.062" | 0.476 lb/ft |
|
$12.04 | ||
|
HB133
A 1.600"
B 0.815"
T 0.062"
Weight 0.224 lb/ft
|
1.600" | 0.815" | 0.062" | 0.224 lb/ft |
|
$5.67 | ||
|
|
HB134
A 1.195"
B 3.350"
T 0.090"
Weight 0.604 lb/ft
|
1.195" | 3.350" | 0.090" | 0.604 lb/ft |
|
$15.28 | ||
|
|
HB135
A 1.200"
B 1.142"
T 0.056"
Weight 0.399 lb/ft
|
1.200" | 1.142" | 0.056" | 0.399 lb/ft |
|
$10.09 | ||
|
|
HB136
A 0.312"
B 1.878"
T 0.062"
Weight 0.284 lb/ft
|
0.312" | 1.878" | 0.062" | 0.284 lb/ft |
|
$7.19 | ||
|
|
HB158
A 0.835"
B 1.825"
T 0.125"
Weight 0.361 lb/ft
|
0.835" | 1.825" | 0.125" | 0.361 lb/ft |
|
$9.13 | ||
|
|
HB159
A 0.856"
B 2.100"
T 0.050"
Weight 0.431 lb/ft
|
0.856" | 2.100" | 0.050" | 0.431 lb/ft |
|
$10.90 | ||
|
|
HB160
A 0.849"
B 3.248"
T 0.050"
Weight 0.457 lb/ft
|
0.849" | 3.248" | 0.050" | 0.457 lb/ft |
|
$11.56 | ||
|
|
HB161
A 0.750"
B 3.300"
T 0.050"
Weight 0.305 lb/ft
|
0.750" | 3.300" | 0.050" | 0.305 lb/ft |
|
$7.72 | ||
|
|
HB162
A 0.856"
B 2.100"
T 0.050"
Weight 0.344 lb/ft
|
0.856" | 2.100" | 0.050" | 0.344 lb/ft |
|
$8.70 | ||
|
|
HB163
A 1.123"
B 3.386"
T 0.050"
Weight 0.470 lb/ft
|
1.123" | 3.386" | 0.050" | 0.470 lb/ft |
|
$11.89 | ||
|
|
HB164
A 1.514"
B 1.314"
T 0.050"
Weight 0.394 lb/ft
|
1.514" | 1.314" | 0.050" | 0.394 lb/ft |
|
$9.97 | ||
|
|
HB165
A 1.014"
B 1.852"
T 0.050"
Weight 0.396 lb/ft
|
1.014" | 1.852" | 0.050" | 0.396 lb/ft |
|
$10.02 | ||
|
HB193
A 1.19"
B 3.35"
T 0.090"
Weight 0.497 lb/ft
|
1.19" | 3.35" | 0.090" | 0.497 lb/ft |
|
$12.57 | ||
|
HB194
A 1.38"
B 3.37"
T 0.060"
Weight 0.469 lb/ft
|
1.38" | 3.37" | 0.060" | 0.469 lb/ft |
|
$11.87 | ||
|
HB195
A 0.98"
B 2.297"
T 0.050"
Weight 0.415 lb/ft
|
0.98" | 2.297" | 0.050" | 0.415 lb/ft |
|
$10.50 | ||
|
HB196
A 1.15"
B 1.79"
T 0.050"
Weight 0.334 lb/ft
|
1.15" | 1.79" | 0.050" | 0.334 lb/ft |
|
$8.45 | ||
|
HB197
A 1.18"
B 1.50"
T 0.050"
Weight 0.353 lb/ft
|
1.18" | 1.50" | 0.050" | 0.353 lb/ft |
|
$8.93 | ||
|
|
HB219
A 1.375"
B 5.030"
T 0.059"
Weight 0.710 lb/ft
|
1.375" | 5.030" | 0.059" | 0.710 lb/ft |
|
$17.96 | ||
|
|
HB224
A 0.620"
B 0.850"
T 0.050"
Weight 0.144 lb/ft
|
0.620" | 0.850" | 0.050" | 0.144 lb/ft |
|
$3.64 | ||
|
|
HB225
A 1.095"
B 2.582"
T 0.050"
Weight 0.543 lb/ft
|
1.095" | 2.582" | 0.050" | 0.543 lb/ft |
|
$13.74 | ||
|
|
HB226
A 1.146"
B 1.540"
T 0.050"
Weight 0.204 lb/ft
|
1.146" | 1.540" | 0.050" | 0.204 lb/ft |
|
$5.16 | ||
|
|
HB227
A 1.744"
B 4.130"
T 0.060"
Weight 1.106 lb/ft
|
1.744" | 4.130" | 0.060" | 1.106 lb/ft |
|
$27.98 | ||
|
|
HB230
A 1.725"
B 2.765"
T 0.060"
Weight 0.820 lb/ft
|
1.725" | 2.765" | 0.060" | 0.820 lb/ft |
|
$20.75 | ||
|
|
HB231
A 0.968"
B 2.610"
T 0.600"
Weight 0.935 lb/ft
|
0.968" | 2.610" | 0.600" | 0.935 lb/ft |
|
$23.66 | ||
|
|
HB265
A 1.771"
B 0.9843"
T 0.060"
Weight 0.302 lb/ft
|
1.771" | 0.9843" | 0.060" | 0.302 lb/ft |
|
$7.64 | ||
|
|
HB266
A 1.606"
B 3.169"
T 0.060"
Weight 0.393 lb/ft
|
1.606" | 3.169" | 0.060" | 0.393 lb/ft |
|
$9.94 | ||
|
|
HB267
A 1.732"
B 3.000"
T 0.060"
Weight 0.432 lb/ft
|
1.732" | 3.000" | 0.060" | 0.432 lb/ft |
|
$10.93 | ||
|
|
HB268
A 0.866"
B 1.772"
T 0.060"
Weight 0.225 lb/ft
|
0.866" | 1.772" | 0.060" | 0.225 lb/ft |
|
$5.69 | ||
|
|
HB269
A 1.146"
B 0.984"
T 0.060"
Weight 0.296 lb/ft
|
1.146" | 0.984" | 0.060" | 0.296 lb/ft |
|
$7.49 | ||
|
|
HB270
A 0.8661"
B 2.551"
T 0.060"
Weight 0.314 lb/ft
|
0.8661" | 2.551" | 0.060" | 0.314 lb/ft |
|
$7.94 | ||
|
|
HB271
A 0.984"
B 2.756"
T 0.060"
Weight 0.247 lb/ft
|
0.984" | 2.756" | 0.060" | 0.247 lb/ft |
|
$6.25 | ||
|
|
HB273
A 1.193"
B 4.047"
T 0.065"
Weight 0.559 lb/ft
|
1.193" | 4.047" | 0.065" | 0.559 lb/ft |
|
$14.14 | ||
|
|
HB274
A 1.378"
B 4.055"
T 0.051"
Weight 0.512 lb/ft
|
1.378" | 4.055" | 0.051" | 0.512 lb/ft |
|
$12.95 | ||
|
|
HB275
A 0.815"
B 4.668"
T 0.051"
Weight 0.528 lb/ft
|
0.815" | 4.668" | 0.051" | 0.528 lb/ft |
|
$13.36 | ||
|
|
JC362
A 0.849"
B 3.248"
T 0.050"
Weight 0.457 lb/ft
|
0.849" | 3.248" | 0.050" | 0.457 lb/ft |
|
$11.56 | ||
|
|
JC363
A 0.750"
B 3.300"
T 0.050"
Weight 0.305 lb/ft
|
0.750" | 3.300" | 0.050" | 0.305 lb/ft |
|
$7.72 | ||
|
|
JC364
A 1.125"
B 3.386"
T 0.050"
Weight 0.470 lb/ft
|
1.125" | 3.386" | 0.050" | 0.470 lb/ft |
|
$11.89 | ||
|
|
JC365
A 0.870"
B 2.827"
T 0.050"
Weight 0.522 lb/ft
|
0.870" | 2.827" | 0.050" | 0.522 lb/ft |
|
$13.21 | ||
|
|
JC366
A 1.060"
B 2.827"
T 0.050"
Weight 0.494 lb/ft
|
1.060" | 2.827" | 0.050" | 0.494 lb/ft |
|
$12.50 | ||
|
|
JC367
A 0.920"
B 2.960"
T 0.050"
Weight 0.412 lb/ft
|
0.920" | 2.960" | 0.050" | 0.412 lb/ft |
|
$10.42 | ||
|
|
JC368
A 0.687"
B 1.500"
T 0.050"
Weight 0.330 lb/ft
|
0.687" | 1.500" | 0.050" | 0.330 lb/ft |
|
$8.35 | ||
|
|
JH347
A 1.015"
B 1.320"
T 0.050"
Weight 0.394 lb/ft
|
1.015" | 1.320" | 0.050" | 0.394 lb/ft |
|
$9.97 | ||
|
|
JH348
A 1.014"
B 1.852"
T 0.050"
Weight 0.396 lb/ft
|
1.014" | 1.852" | 0.050" | 0.396 lb/ft |
|
$10.02 | ||
|
|
JH352
A 1.297"
B 2.180"
T 0.060"
Weight 0.499 lb/ft
|
1.297" | 2.180" | 0.060" | 0.499 lb/ft |
|
$12.62 | ||
|
|
JH353
A 0.920"
B 2.156"
T 0.050"
Weight 0.415 lb/ft
|
0.920" | 2.156" | 0.050" | 0.415 lb/ft |
|
$10.50 | ||
|
|
JS112
A 1.123"
B 3.768"
T 0.062"
Weight 0.588 lb/ft
|
1.123" | 3.768" | 0.062" | 0.588 lb/ft |
|
$14.88 | ||
|
|
JS118
A 0.849"
B 3.609"
T 0.062"
Weight 0.607 lb/ft
|
0.849" | 3.609" | 0.062" | 0.607 lb/ft |
|
$15.36 | ||
|
|
JS121
A 1.000"
B 1.000"
T 0.062"
Weight 0.336 lb/ft
|
1.000" | 1.000" | 0.062" | 0.336 lb/ft |
|
$8.50 | ||
|
|
JS123
A 0.875"
B 3.375"
T 0.125"
Weight 0.620 lb/ft
|
0.875" | 3.375" | 0.125" | 0.620 lb/ft |
|
$15.69 | ||
|
|
JS124
A 0.856"
B 2.100"
T 0.062"
Weight 0.400 lb/ft
|
0.856" | 2.100" | 0.062" | 0.400 lb/ft |
|
$10.12 | ||
|
|
JS126
A 0.345"
B 1.821"
T 0.062"
Weight 0.284 lb/ft
|
0.345" | 1.821" | 0.062" | 0.284 lb/ft |
|
$7.19 | ||
|
|
JS127
A 0.345"
B 3.249"
T 0.062"
Weight 0.389 lb/ft
|
0.345" | 3.249" | 0.062" | 0.389 lb/ft |
|
$9.84 | ||
|
|
JS311
A 0.731"
B 5.781"
T 0.070"
Weight 0.712 lb/ft
|
0.731" | 5.781" | 0.070" | 0.712 lb/ft |
|
$18.01 | ||
|
|
JS312
A 0.562"
B 1.562"
T 0.070"
Weight 0.240 lb/ft
|
0.562" | 1.562" | 0.070" | 0.240 lb/ft |
|
$6.07 | ||
|
|
JS313
A 0.562"
B 1.681"
T 0.070"
Weight 0.255 lb/ft
|
0.562" | 1.681" | 0.070" | 0.255 lb/ft |
|
$6.45 | ||
|
|
JS315
A 0.375"
B 0.988"
T 0.062"
Weight 0.114 lb/ft
|
0.375" | 0.988" | 0.062" | 0.114 lb/ft |
|
$2.88 | ||
|
|
SC035
A 1.212"
B 1.480"
T 0.062"
Weight 0.438 lb/ft
|
1.212" | 1.480" | 0.062" | 0.438 lb/ft |
|
$11.08 | ||
|
|
SC036
A 1.735"
B 1.180"
T 0.070"
Weight 0.497 lb/ft
|
1.735" | 1.180" | 0.070" | 0.497 lb/ft |
|
$12.57 | ||
|
|
SC056
A 1.194"
B 1.260"
T 0.620"
Weight 0.309 lb/ft
|
1.194" | 1.260" | 0.620" | 0.309 lb/ft |
|
$7.82 | ||
|
|
SC057
A 0.550"
B 1.706"
T 0.050"
Weight 0.285 lb/ft
|
0.550" | 1.706" | 0.050" | 0.285 lb/ft |
|
$7.21 | ||
|
|
SC062
A 1.000"
B 2.246"
T 0.062"
Weight 0.550 lb/ft
|
1.000" | 2.246" | 0.062" | 0.550 lb/ft |
|
$13.92 | ||
|
|
SC063
A 1.375"
B 3.375"
T 0.062"
Weight 0.535 lb/ft
|
1.375" | 3.375" | 0.062" | 0.535 lb/ft |
|
$13.54 | ||
|
|
SC258
A 1.000"
B 2.450"
T 0.058"
Weight 0.491 lb/ft
|
1.000" | 2.450" | 0.058" | 0.491 lb/ft |
|
$12.42 | ||
|
|
SC259
A 0.826"
B 5.357"
T 0.062"
Weight 0.684 lb/ft
|
0.826" | 5.357" | 0.062" | 0.684 lb/ft |
|
$17.31 | ||
|
|
SC260
A 0.963"
B 3.445"
T 0.062"
Weight 0.557 lb/ft
|
0.963" | 3.445" | 0.062" | 0.557 lb/ft |
|
$14.09 | ||
|
|
SC261
A 1.000"
B 4.575"
T 0.060"
Weight 0.729 lb/ft
|
1.000" | 4.575" | 0.060" | 0.729 lb/ft |
|
$18.44 | ||
|
|
SC265
A 0.600"
B 1.000"
T 0.060"
Weight 0.1534 lb/ft
|
0.600" | 1.000" | 0.060" | 0.1534 lb/ft |
|
$3.88 | ||
|
|
SC267
A 1.180"
B 1.7351"
T 0.080"
Weight 0.520 lb/ft
|
1.180" | 1.7351" | 0.080" | 0.520 lb/ft |
|
$13.16 | ||
|
|
SC268
A 1.194"
B 1.260"
T 0.062"
Weight 0.302 lb/ft
|
1.194" | 1.260" | 0.062" | 0.302 lb/ft |
|
$7.64 | ||
|
|
SC269
A 1.700"
B 1.200"
T 0.070"
Weight 0.744 lb/ft
|
1.700" | 1.200" | 0.070" | 0.744 lb/ft |
|
$18.82 | ||
|
|
SC270
A 0.562"
B 0.772"
T 0.062"
Weight 0.105 lb/ft
|
0.562" | 0.772" | 0.062" | 0.105 lb/ft |
|
$2.66 | ||
|
|
SC271
A 1.530"
B 2.245"
T 0.062"
Weight 0.550 lb/ft
|
1.530" | 2.245" | 0.062" | 0.550 lb/ft |
|
$13.92 | ||
|
|
SC272
A 1.000"
B 2.450"
T 0.058"
Weight 0.491 lb/ft
|
1.000" | 2.450" | 0.058" | 0.491 lb/ft |
|
$12.42 | ||
|
|
SC294
A 1.227"
B 1.840"
T 0.060"
Weight 0.574 lb/ft
|
1.227" | 1.840" | 0.060" | 0.574 lb/ft |
|
$14.52 | ||
|
|
SC295
A 0.960"
B 2.380"
T 0.620"
Weight 0.611 lb/ft
|
0.960" | 2.380" | 0.620" | 0.611 lb/ft |
|
$15.46 | ||
|
|
SC302
A 0.875"
B 3.170"
T 0.078"
Weight 0.392 lb/ft
|
0.875" | 3.170" | 0.078" | 0.392 lb/ft |
|
$9.92 | ||
|
|
SC303
A 0.875"
B 4.812"
T 0.054"
Weight 0.538 lb/ft
|
0.875" | 4.812" | 0.054" | 0.538 lb/ft |
|
$13.61 | ||
|
|
SC304
A 0.715"
B 3.250"
T 0.062"
Weight 0.421 lb/ft
|
0.715" | 3.250" | 0.062" | 0.421 lb/ft |
|
$10.65 | ||
|
|
SC305
A 0.890"
B 1.250"
T 0.600"
Weight 0.332 lb/ft
|
0.890" | 1.250" | 0.600" | 0.332 lb/ft |
|
$8.40 | ||
|
|
SC401
A 0.598"
B 2.642"
T 0.051"
Weight 0.152 lb/ft
|
0.598" | 2.642" | 0.051" | 0.152 lb/ft |
|
$3.85 | ||
|
|
SC411
A 1.217"
B 2.283"
T 0.053"
Weight 0.780 lb/ft
|
1.217" | 2.283" | 0.053" | 0.780 lb/ft |
|
$19.73 |
Note: Prices are calculated based on selected finish, length and quantity. All dimensions are nominal and subject to Cantrex standards.
Standard Extrusion
Aluminium Angle Dimension Chart
Reference chart for die number, dimension A, dimension B, thickness and weight.
