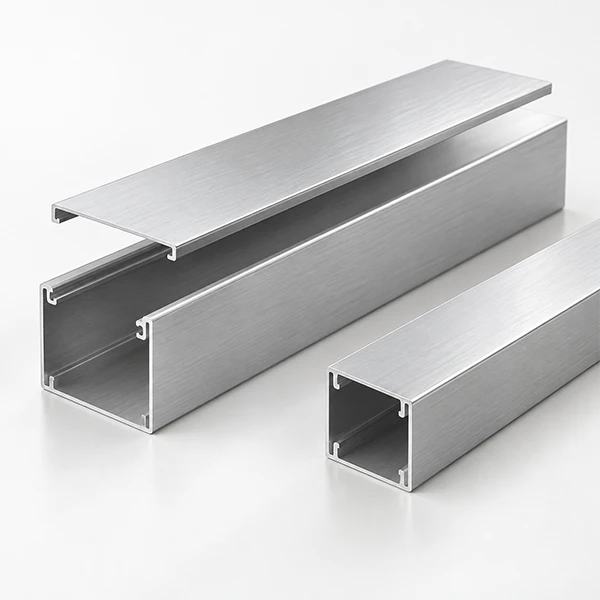

Available Trunking Profiles
Browse Cantrex aluminium trunking profiles by die number, dimension, thickness and weight. Select your required finish, length and quantity to calculate the price instantly.
| Image | Die No | A | B | T | Weight | Select Finish & Length | Qty | Price | Action |
|---|---|---|---|---|---|---|---|---|---|
|
HB073
A
1.938"
B
4.000"
T
0.062"
Weight
0.613 lb/ft
|
1.938" | 4.000" | 0.062" | 0.613 lb/ft |
|
$15.51 | ||
|
|
HB074
A
1.958"
B
4.080"
T
0.062"
Weight
0.737 lb/ft
|
1.958" | 4.080" | 0.062" | 0.737 lb/ft |
|
$18.65 | ||
|
|
HB075
A
0.400"
B
1.625"
T
0.062"
Weight
0.208 lb/ft
|
0.400" | 1.625" | 0.062" | 0.208 lb/ft |
|
$5.26 | ||
|
|
HB076
A
1.531"
B
1.625"
T
0.085"
Weight
0.505 lb/ft
|
1.531" | 1.625" | 0.085" | 0.505 lb/ft |
|
$12.78 | ||
|
|
HB202
A
0.467"
B
1.796"
T
0.085"
Weight
0.250 lb/ft
|
0.467" | 1.796" | 0.085" | 0.250 lb/ft |
|
$6.33 | ||
|
|
HB203
A
0.915"
B
1.796"
T
0.085"
Weight
0.364 lb/ft
|
0.915" | 1.796" | 0.085" | 0.364 lb/ft |
|
$9.21 | ||
|
|
HB208
A
1.750"
B
4.000"
T
0.065"
Weight
0.682 lb/ft
|
1.750" | 4.000" | 0.065" | 0.682 lb/ft |
|
$17.25 | ||
|
|
HB209
A
0.120"
B
3.940"
T
0.080"
Weight
0.389 lb/ft
|
0.120" | 3.940" | 0.080" | 0.389 lb/ft |
|
$9.84 | ||
|
|
HB220
A
4.000"
B
4.000"
T
0.090"
Weight
1.260 lb/ft
|
4.000" | 4.000" | 0.090" | 1.260 lb/ft |
|
$31.88 | ||
|
JC373
A
0.915"
B
1.796"
T
0.085"
Weight
0.352 lb/ft
|
0.915" | 1.796" | 0.085" | 0.352 lb/ft |
|
$8.91 | ||
|
|
JS457
A
3.000"
B
3.000"
T
0.064"
Weight
0.680 lb/ft
|
3.000" | 3.000" | 0.064" | 0.680 lb/ft |
|
$17.20 | ||
|
|
JS476
A
1.531"
B
1.625"
T
0.080"
Weight
0.505 lb/ft
|
1.531" | 1.625" | 0.080" | 0.505 lb/ft |
|
$12.78 | ||
|
|
JS505
A
-
B
3.000"
T
0.064"
Weight
0.277 lb/ft
|
- | 3.000" | 0.064" | 0.277 lb/ft |
|
$7.01 | ||
|
|
JS622
A
4.000"
B
4.000"
T
0.090"
Weight
1.260 lb/ft
|
4.000" | 4.000" | 0.090" | 1.260 lb/ft |
|
$31.88 | ||
|
|
JS623
A
-
B
4.000"
T
0.050"
Weight
0.336 lb/ft
|
- | 4.000" | 0.050" | 0.336 lb/ft |
|
$8.50 | ||
|
|
JS763
A
0.467"
B
1.796"
T
0.085"
Weight
0.246 lb/ft
|
0.467" | 1.796" | 0.085" | 0.246 lb/ft |
|
$6.22 | ||
|
|
JS764
A
0.915"
B
1.796"
T
0.085"
Weight
0.370 lb/ft
|
0.915" | 1.796" | 0.085" | 0.370 lb/ft |
|
$9.36 | ||
|
|
SC041
A
1.500"
B
1.770"
T
0.055"
Weight
0.323 lb/ft
|
1.500" | 1.770" | 0.055" | 0.323 lb/ft |
|
$8.17 | ||
|
|
SC043
A
1.500"
B
1.770"
T
0.055"
Weight
0.312 lb/ft
|
1.500" | 1.770" | 0.055" | 0.312 lb/ft |
|
$7.89 | ||
|
|
SC278
A
2.500"
B
3.400"
T
0.062"
Weight
0.645 lb/ft
|
2.500" | 3.400" | 0.062" | 0.645 lb/ft |
|
$16.32 | ||
|
|
SC279
A
0.237"
B
2.380"
T
0.045"
Weight
0.147 lb/ft
|
0.237" | 2.380" | 0.045" | 0.147 lb/ft |
|
$3.72 | ||
|
TR001
A
0.400"
B
1.625"
T
0.080"
Weight
0.191 lb/ft
|
0.400" | 1.625" | 0.080" | 0.191 lb/ft |
|
$4.83 | ||
|
TR002
A
1.531"
B
1.625"
T
0.080"
Weight
0.513 lb/ft
|
1.531" | 1.625" | 0.080" | 0.513 lb/ft |
|
$12.98 | ||
|
TR003
A
2.000"
B
1.500"
T
0.080"
Weight
0.524 lb/ft
|
2.000" | 1.500" | 0.080" | 0.524 lb/ft |
|
$13.26 | ||
|
TR004
A
-
B
2.000"
T
0.080"
Weight
0.227 lb/ft
|
- | 2.000" | 0.080" | 0.227 lb/ft |
|
$5.74 |
Note: Prices are calculated based on selected finish, length and quantity. All dimensions are nominal and subject to Cantrex standards.
Aluminium Profile Dimension Chart
Reference chart for die number, dimensions, thickness and weight.
