Cantrex Aluminium Profiles

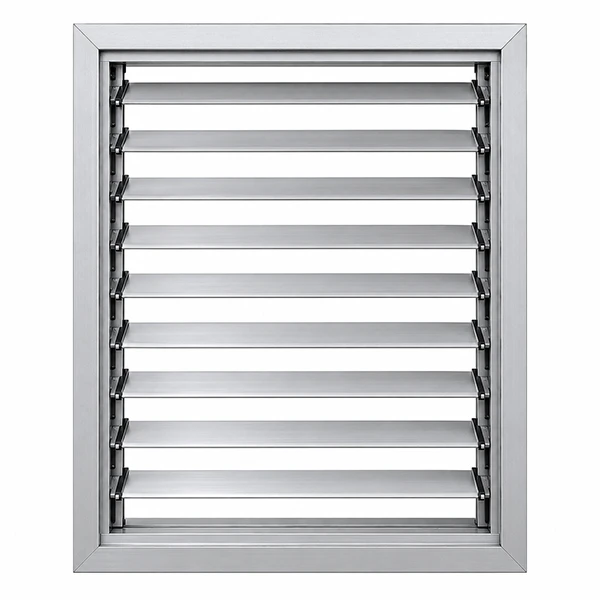

Available Security Louvre Window Sections Profiles
Browse Cantrex aluminium security louvre window sections profiles by die number, dimension, thickness and weight. Select your required finish, length and quantity to calculate the price instantly.
| Image | Die No | A | B | T | Weight | Select Finish & Length | Qty | Price | Action |
|---|---|---|---|---|---|---|---|---|---|
|
HB258
A 1.000"
B 2.000"
T 0.060"
Weight 0.277 lb/ft
|
1.000" | 2.000" | 0.060" | 0.277 lb/ft |
|
$7.01 | ||
|
|
HB259
A 1.260"
B 2.000"
T 0.055"
Weight 0.330 lb/ft
|
1.260" | 2.000" | 0.055" | 0.330 lb/ft |
|
$8.35 | ||
|
|
HB260
A 1.260"
B 2.000"
T 0.050"
Weight 0.256 lb/ft
|
1.260" | 2.000" | 0.050" | 0.256 lb/ft |
|
$6.48 | ||
|
|
HB261
A 4.682"
B 0.860"
T 0.063"
Weight 0.526 lb/ft
|
4.682" | 0.860" | 0.063" | 0.526 lb/ft |
|
$13.31 | ||
|
|
HB262
A 0.953"
B 0.864"
T 0.063"
Weight 0.213 lb/ft
|
0.953" | 0.864" | 0.063" | 0.213 lb/ft |
|
$5.39 | ||
|
|
HB264
A 0.125"
B 0.725"
T 0.125"
Weight 0.110 lb/ft
|
0.125" | 0.725" | 0.125" | 0.110 lb/ft |
|
$2.78 | ||
|
|
HB263
A 0.418"
B 0.386"
T —
Weight 0.092 lb/ft
|
0.418" | 0.386" | — | 0.092 lb/ft |
|
$2.33 |
Note: Prices are calculated based on selected finish, length and quantity. All dimensions are nominal and subject to Cantrex standards.
