Cantrex Aluminium Profiles

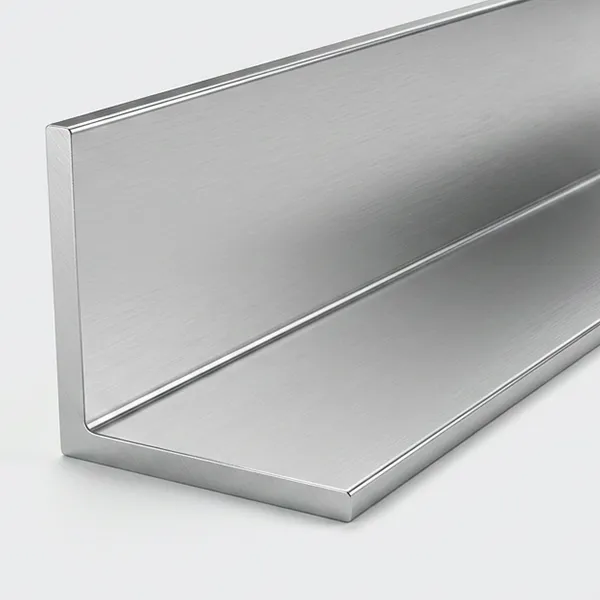

Available Angles Profiles
Browse Cantrex aluminium angles profiles by die number, dimension, thickness and weight. Select your required finish, length and quantity to calculate the price instantly.

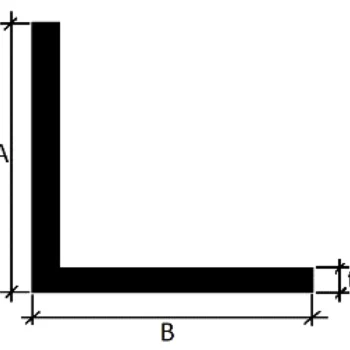

| Image | Die No | A | B | T | Weight | Select Finish & Length | Qty | Price | Action |
|---|---|---|---|---|---|---|---|---|---|
|
AN001
A 1/2"
B 1/2"
T 1/16"
Weight 0.069 lb/ft
|
1/2" | 1/2" | 1/16" | 0.069 lb/ft |
|
$1.75 | ||
|
|
AN002
A 3/4
B 3/4"
T 1/16"
Weight 0.106 lb/ft
|
3/4 | 3/4" | 1/16" | 0.106 lb/ft |
|
$2.68 | ||
|
|
AN003
A 3/4"
B 3/4"
T 1/8"
Weight 0.206 lb/ft
|
3/4" | 3/4" | 1/8" | 0.206 lb/ft |
|
$5.21 | ||
|
|
AN004
A 1"
B 1"
T 1/8"
Weight 0.281 lb/ft
|
1" | 1" | 1/8" | 0.281 lb/ft |
|
$7.11 | ||
|
|
AN005
A 1 1/4"
B 1 1/4"
T 1/8"
Weight 0.356 lb/ft
|
1 1/4" | 1 1/4" | 1/8" | 0.356 lb/ft |
|
$9.01 | ||
|
|
AN006
A 1 1/2"
B 1 1/2"
T 1/8"
Weight 0.431 lb/ft
|
1 1/2" | 1 1/2" | 1/8" | 0.431 lb/ft |
|
$10.90 | ||
|
|
AN007
A 1 3/4"
B 1 3/4"
T 1/8"
Weight 0.506 lb/ft
|
1 3/4" | 1 3/4" | 1/8" | 0.506 lb/ft |
|
$12.80 | ||
|
|
AN008
A 2"
B 2"
T 1/8"
Weight 0.581 lb/ft
|
2" | 2" | 1/8" | 0.581 lb/ft |
|
$14.70 | ||
|
|
AN009
A 2"
B 2"
T 1/4"
Weight 1.125 lb/ft
|
2" | 2" | 1/4" | 1.125 lb/ft |
|
$28.46 | ||
|
|
AN011
A 1"
B 1"
T 1/8"
Weight 0.144 lb/ft
|
1" | 1" | 1/8" | 0.144 lb/ft |
|
$3.64 | ||
|
|
AN012
A 1 1/2"
B 1 1/2"
T 1/16"
Weight 0.217 lb/ft
|
1 1/2" | 1 1/2" | 1/16" | 0.217 lb/ft |
|
$5.49 | ||
|
|
AN013
A 2"
B 2"
T 1/4"
Weight 0.832 lb/ft
|
2" | 2" | 1/4" | 0.832 lb/ft |
|
$21.05 | ||
|
|
AN014
A 0.787"
B 0.787"
T 1/16"
Weight 0.084 lb/ft
|
0.787" | 0.787" | 1/16" | 0.084 lb/ft |
|
$2.13 |
Note: Prices are calculated based on selected finish, length and quantity. All dimensions are nominal and subject to Cantrex standards.
Standard Extrusion

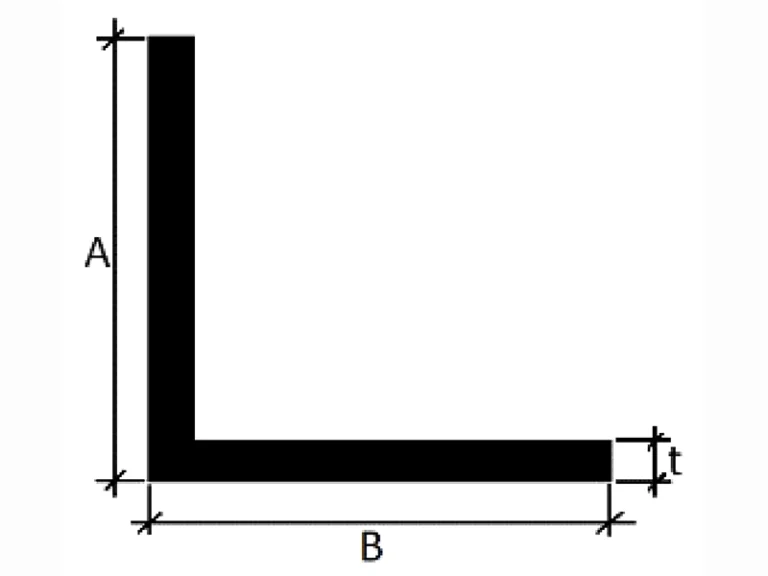

Aluminium Angle Dimension Chart
Reference chart for die number, dimension A, dimension B, thickness and weight.
