Cantrex Aluminium Profiles

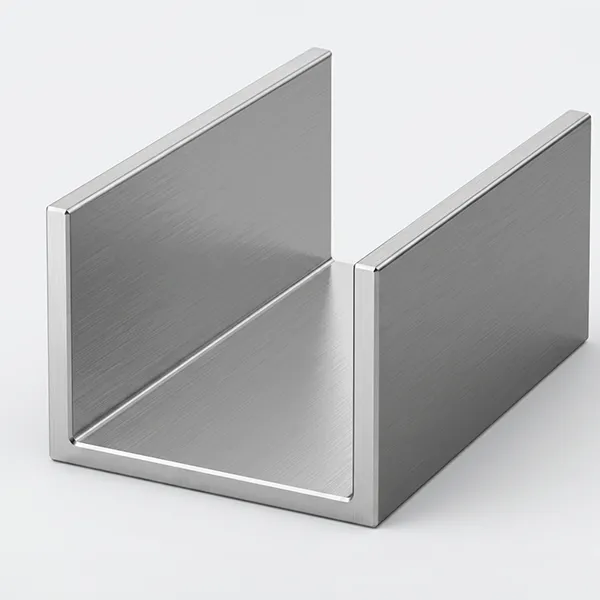

Available Channels Profiles
Browse Cantrex aluminium channels profiles by die number, dimension, thickness and weight. Select your required finish, length and quantity to calculate the price instantly.
| Image | Die No | A | B | T | Weight | Select Finish & Length | Qty | Price | Action |
|---|---|---|---|---|---|---|---|---|---|
|
CH001
A 5/16"
B 9/16"
T 1/16"
Weight 0.097 lb/ft
|
5/16" | 9/16" | 1/16" | 0.097 lb/ft |
|
$2.45 | ||
|
|
CH002
A 3/8"
B 1/2"
T 1/16"
Weight 0.093 lb/ft
|
3/8" | 1/2" | 1/16" | 0.093 lb/ft |
|
$2.35 | ||
|
|
CH003
A 7/16"
B 5/8"
T 1/16"
Weight 0.116 lb/ft
|
7/16" | 5/8" | 1/16" | 0.116 lb/ft |
|
$2.93 | ||
|
|
CH004
A 1/2"
B 3/8"
T 1/16"
Weight 0.121 lb/ft
|
1/2" | 3/8" | 1/16" | 0.121 lb/ft |
|
$3.06 | ||
|
|
CH005
A 3/4"
B 3/4"
T 3/32"
Weight 0.226 lb/ft
|
3/4" | 3/4" | 3/32" | 0.226 lb/ft |
|
$5.72 | ||
|
|
CH006
A 3/4"
B 3/8"
T 1/8"
Weight 0.187 lb/ft
|
3/4" | 3/8" | 1/8" | 0.187 lb/ft |
|
$4.73 | ||
|
|
CH007
A 1"
B 1"
T 1/16"
Weight 0.213 lb/ft
|
1" | 1" | 1/16" | 0.213 lb/ft |
|
$5.39 | ||
|
|
CH008
A 1"
B 7/8"
T 1/16"
Weight 0.195 lb/ft
|
1" | 7/8" | 1/16" | 0.195 lb/ft |
|
$4.93 | ||
|
|
CH009
A 1"
B 1/4"
T 1/16"
Weight 0.102 lb/ft
|
1" | 1/4" | 1/16" | 0.102 lb/ft |
|
$2.58 | ||
|
|
CH010
A 1"
B 3/8"
T 1/8"
Weight 0.225 lb/ft
|
1" | 3/8" | 1/8" | 0.225 lb/ft |
|
$5.69 | ||
|
|
CH011
A 1"
B 1/2"
T 1/8"
Weight 0.262 lb/ft
|
1" | 1/2" | 1/8" | 0.262 lb/ft |
|
$6.63 | ||
|
|
CH012
A 1-3/16"
B 1"
T 1/16"
Weight 0.227 lb/ft
|
1-3/16" | 1" | 1/16" | 0.227 lb/ft |
|
$5.74 | ||
|
|
CH013
A 1-19/32"
B 1-3/4"
T 1/4"
Weight 1.368 lb/ft
|
1-19/32" | 1-3/4" | 1/4" | 1.368 lb/ft |
|
$34.61 | ||
|
|
CH014
A 1-3/8"
B 3/4"
T 1/16"
Weight 0.214 lb/ft
|
1-3/8" | 3/4" | 1/16" | 0.214 lb/ft |
|
$5.41 | ||
|
|
CH015
A 1-3/4"
B 1"
T 1/16"
Weight 0.296 lb/ft
|
1-3/4" | 1" | 1/16" | 0.296 lb/ft |
|
$7.49 | ||
|
|
CH016
A 2"
B 1"
T 1/8"
Weight 0.562 lb/ft
|
2" | 1" | 1/8" | 0.562 lb/ft |
|
$14.22 | ||
|
|
CH017
A 3-3/4"
B 1/2"
T 1/16"
Weight 0.731 lb/ft
|
3-3/4" | 1/2" | 1/16" | 0.731 lb/ft |
|
$18.49 | ||
|
|
CH018
A 3-1/2"
B 3/4"
T 3/32"
Weight 0.348 lb/ft
|
3-1/2" | 3/4" | 3/32" | 0.348 lb/ft |
|
$8.80 | ||
|
|
CH019
A 3"
B 3/4"
T 1/8"
Weight 0.768 lb/ft
|
3" | 3/4" | 1/8" | 0.768 lb/ft |
|
$19.43 | ||
|
|
CH020
A 4-1/8"
B 7/8"
T 1/4"
Weight 1.687 lb/ft
|
4-1/8" | 7/8" | 1/4" | 1.687 lb/ft |
|
$42.68 | ||
|
|
CH021
A 4-1/2"
B 3/4"
T 1/4"
Weight 1.650 lb/ft
|
4-1/2" | 3/4" | 1/4" | 1.650 lb/ft |
|
$41.75 | ||
|
|
CH022
A 1/2"
B 1/2"
T 1/16"
Weight 0.102 lb/ft
|
1/2" | 1/2" | 1/16" | 0.102 lb/ft |
|
$2.58 | ||
|
|
CH023
A 1"
B 1/2"
T 1/16"
Weight 0.141 lb/ft
|
1" | 1/2" | 1/16" | 0.141 lb/ft |
|
$3.57 | ||
|
|
CH025
A 5/8"
B 9/16"
T 1/16"
Weight 0.130 lb/ft
|
5/8" | 9/16" | 1/16" | 0.130 lb/ft |
|
$3.29 | ||
|
|
CH026
A 3/4"
B 19/32"
T 5/64"
Weight 0.160 lb/ft
|
3/4" | 19/32" | 5/64" | 0.160 lb/ft |
|
$4.05 | ||
|
|
CH027
A 1"
B 1-1/2"
T 1/8"
Weight 0.565 lb/ft
|
1" | 1-1/2" | 1/8" | 0.565 lb/ft |
|
$14.29 |
Note: Prices are calculated based on selected finish, length and quantity. All dimensions are nominal and subject to Cantrex standards.
Standard Extrusion

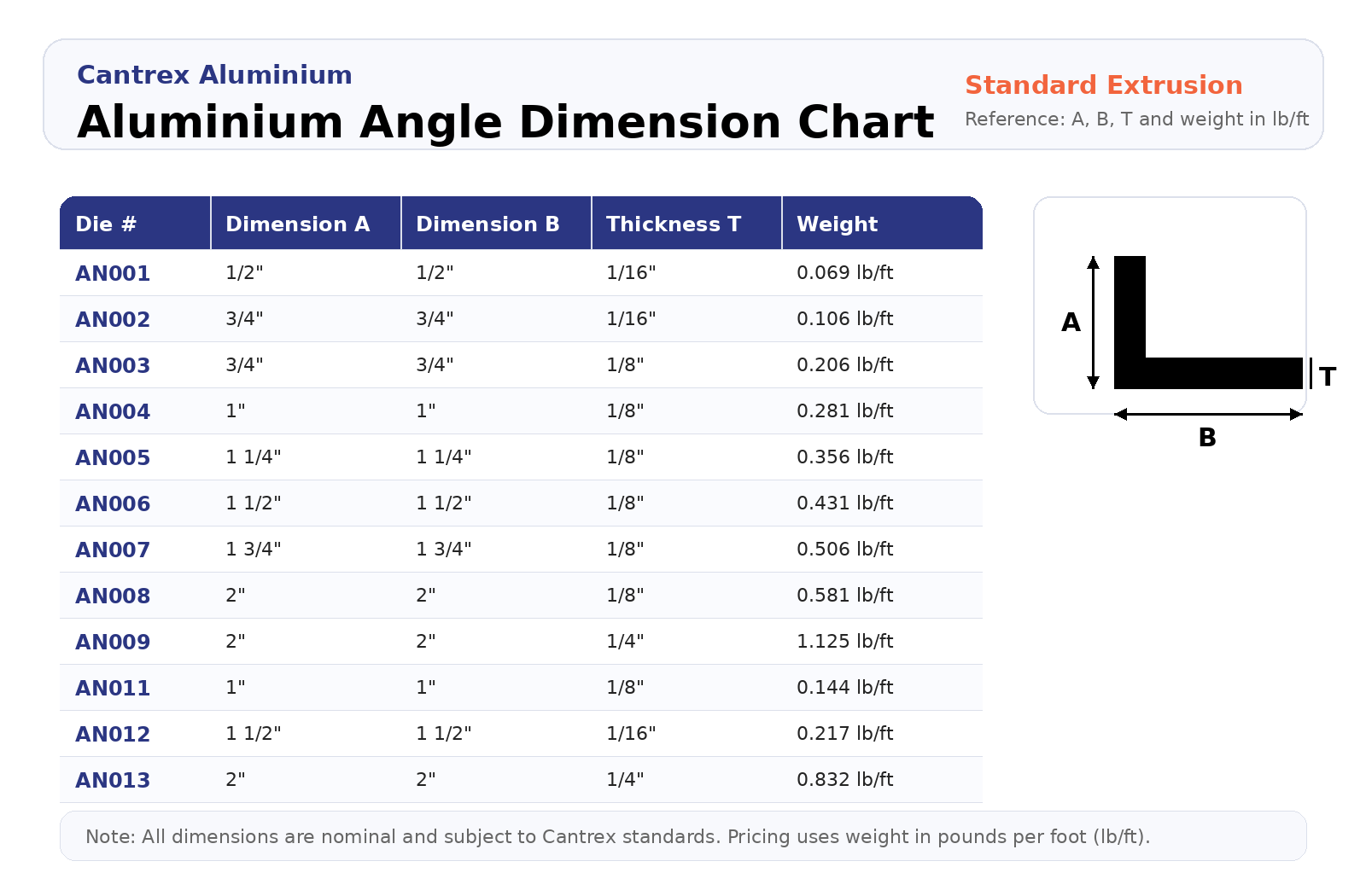

Aluminium Angle Dimension Chart
Reference chart for die number, dimension A, dimension B, thickness and weight.
