Cantrex Aluminium Profiles

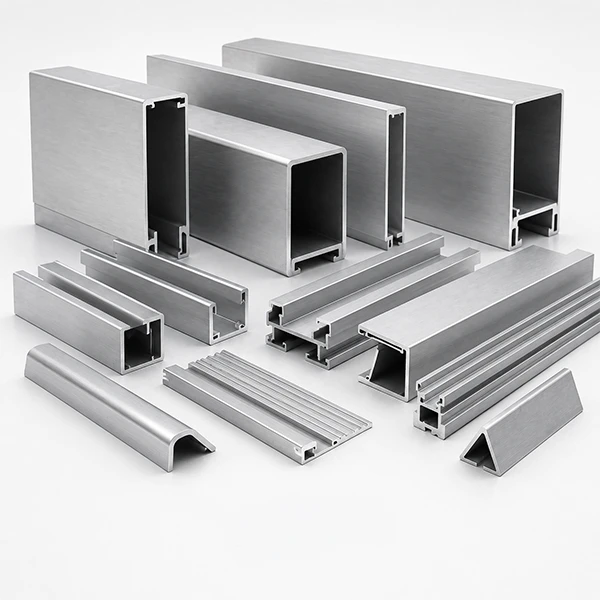

Available Truck Profiles
Browse Cantrex aluminium truck profiles by die number, dimension, thickness and weight. Select your required finish, length and quantity to calculate the price instantly.
| Image | Die No | A | B | T | Weight | Select Finish & Length | Qty | Price | Action |
|---|---|---|---|---|---|---|---|---|---|
|
CH024
A 0.750"
B 1.000"
T 0.050"
Weight 0.140 lb/ft
|
0.750" | 1.000" | 0.050" | 0.140 lb/ft |
|
$3.54 | ||
|
CH025
A 5/8"
B 9/16"
T 1/16"
Weight 0.130 lb/ft
|
5/8" | 9/16" | 1/16" | 0.130 lb/ft |
|
$3.29 | ||
|
|
JS196
A 0.500"
B 4.000"
T 0.125"
Weight 0.776 lb/ft
|
0.500" | 4.000" | 0.125" | 0.776 lb/ft |
|
$19.63 | ||
|
|
JS302
A 0.787"
B 0.787"
T 0.039"
Weight 0.085 lb/ft
|
0.787" | 0.787" | 0.039" | 0.085 lb/ft |
|
$2.15 | ||
|
|
SC040
A 0.470"
B 4.333"
T 0.060"
Weight 0.459 lb/ft
|
0.470" | 4.333" | 0.060" | 0.459 lb/ft |
|
$11.61 | ||
|
|
SC041
A 1.500"
B 1.770"
T 0.055"
Weight 0.323 lb/ft
|
1.500" | 1.770" | 0.055" | 0.323 lb/ft |
|
$8.17 | ||
|
|
SC042
A 1.400"
B 1.400"
T 0.062"
Weight 0.336 lb/ft
|
1.400" | 1.400" | 0.062" | 0.336 lb/ft |
|
$8.50 | ||
|
|
SC043
A 1.500"
B 1.770"
T 0.055"
Weight 0.312 lb/ft
|
1.500" | 1.770" | 0.055" | 0.312 lb/ft |
|
$7.89 | ||
|
|
SC151
A 0.440"
B 4.000"
T 0.063"
Weight 0.416 lb/ft
|
0.440" | 4.000" | 0.063" | 0.416 lb/ft |
|
$10.52 | ||
|
|
SC193
A 2.100"
B 4.160"
T 0.070"
Weight 0.670 lb/ft
|
2.100" | 4.160" | 0.070" | 0.670 lb/ft |
|
$16.95 | ||
|
|
SC213
A 0.270"
B 0.505"
T 0.270"
Weight 0.126 lb/ft
|
0.270" | 0.505" | 0.270" | 0.126 lb/ft |
|
$3.19 | ||
|
|
SC217
A 0.6875"
B 1.375"
T 0.060"
Weight 0.225 lb/ft
|
0.6875" | 1.375" | 0.060" | 0.225 lb/ft |
|
$5.69 | ||
|
|
SC218
A 0.688"
B 3.000"
T 0.098"
Weight 0.571 lb/ft
|
0.688" | 3.000" | 0.098" | 0.571 lb/ft |
|
$14.45 | ||
|
|
SC307
A 1.275"
B 3.750"
T 0.125"
Weight 0.816 lb/ft
|
1.275" | 3.750" | 0.125" | 0.816 lb/ft |
|
$20.64 | ||
|
|
SC308
A 0.875"
B 4.000"
T 0.125"
Weight 0.739 lb/ft
|
0.875" | 4.000" | 0.125" | 0.739 lb/ft |
|
$18.70 | ||
|
|
SC310
A 2.750"
B 2.900"
T 0.125"
Weight 1.133 lb/ft
|
2.750" | 2.900" | 0.125" | 1.133 lb/ft |
|
$28.66 | ||
|
|
SC311
A 0.500"
B 0.875"
T 0.094"
Weight 0.140 lb/ft
|
0.500" | 0.875" | 0.094" | 0.140 lb/ft |
|
$3.54 | ||
|
|
SC316
A 1.000"
B 2.547"
T 0.0625"
Weight 0.322 lb/ft
|
1.000" | 2.547" | 0.0625" | 0.322 lb/ft |
|
$8.15 | ||
|
|
SC325
A 3.020"
B 4.000"
T 0.090"
Weight 0.955 lb/ft
|
3.020" | 4.000" | 0.090" | 0.955 lb/ft |
|
$24.16 | ||
|
|
SC326
A 1.000"
B 5.500"
T 0.090"
Weight 1.124 lb/ft
|
1.000" | 5.500" | 0.090" | 1.124 lb/ft |
|
$28.44 | ||
|
|
SC329
A 2.000"
B 6.500"
T 0.187"
Weight 2.490 lb/ft
|
2.000" | 6.500" | 0.187" | 2.490 lb/ft |
|
$63.00 | ||
|
|
SC457
A 0.365"
B 1.590"
T 0.089"
Weight 0.176 lb/ft
|
0.365" | 1.590" | 0.089" | 0.176 lb/ft |
|
$4.45 | ||
|
|
SC458
A 1.585"
B 3.000"
T 0.100"
Weight 0.840 lb/ft
|
1.585" | 3.000" | 0.100" | 0.840 lb/ft |
|
$21.25 |
Note: Prices are calculated based on selected finish, length and quantity. All dimensions are nominal and subject to Cantrex standards.
