6063-T5 Aluminium Sliding Window Profile JC365 – 0.870″ × 2.827″ × 0.050″; 0.522 lb/ft (0.777 kg/m)
“Aluminium 6063-T5 Sliding Window Profile – Precision-extruded aluminium section designed for sliding window systems. Available in different finishes, lengths and quantities.”
• All dimensions are nominal and subject to tolerance as per Cantrex Standards 004.
• Custom sizes can be made up to a maximum of 7″ CCD.

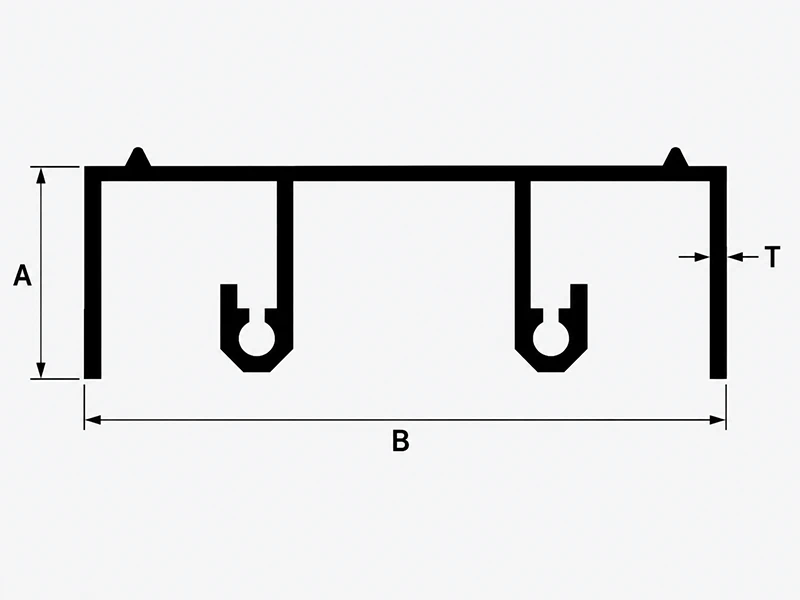

| A (in) | 0.870" (22.098 mm) |
|---|---|
| B (in) | 2.827" (71.8058 mm) |
| T (in) | 0.050" (1.270 mm) |
| Weight Ib/ft | 0.522 lb/ft (0.777 kg/m) |
| Finish | Anodic, Anodised, Mill Finish, Powder Coated Black, Powder Coated Bronze, Powder Coated White, Wood Grain |
| Size (FT) |
