6063-T5 Aluminium Sliding Window Bottom Bearing Profile HB195 – 0.98″ × 2.297″ × 0.050″; 0.415 lb/ft (1.361 kg/m)
“Aluminium 6063-T5 Sliding Window Bottom Bearing Profile – Precision-extruded aluminium section designed for sliding window systems. Available in different finishes, lengths and quantities.”
• All dimensions are nominal and subject to tolerance as per Cantrex Standards 004.
• Custom sizes can be made up to a maximum of 7″ CCD.

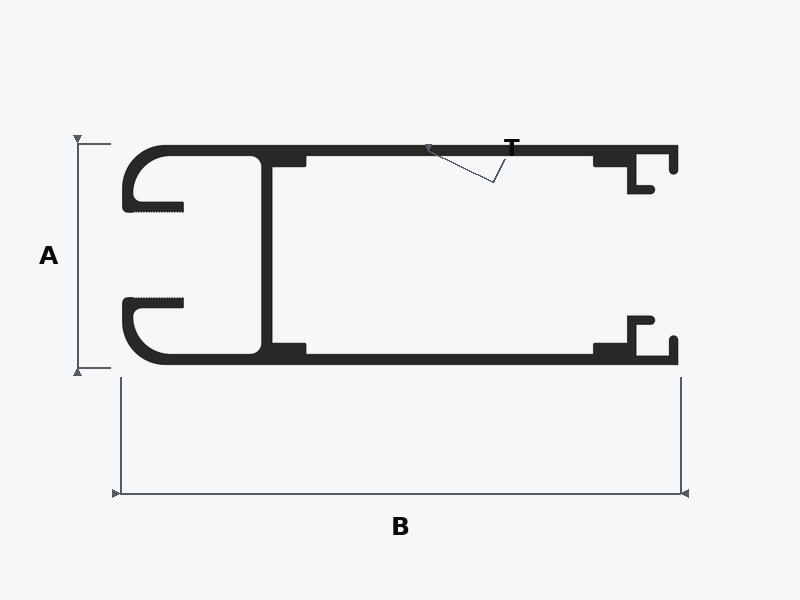

| A (in) | 0.98" (24.892 mm) |
|---|---|
| B (in) | 2.297" (58.3438 mm) |
| T (in) | 0.050" (1.27 mm) |
| Weight Ib/ft | 0.415 lb/ft (1.361 kg/m) |
| Finish | Anodic, Anodised, Mill Finish, Powder Coated Black, Powder Coated Bronze, Powder Coated White, Wood Grain |
| Size (FT) |
