6063-T5 Aluminium Rectangular Tube Profile HB311 – 1.5″ × 3″ × 0.045″; 0.467 lb/ft (0.6949726 kg/m)
Aluminium 6063-T5 Rectangular Tube Profile – Precision-extruded aluminium section designed for patio door systems. Available in different finishes, lengths and quantities.
• All dimensions are nominal and subject to tolerance as per Cantrex Standards 004.
• Custom sizes can be made up to a maximum of 7″ CCD.

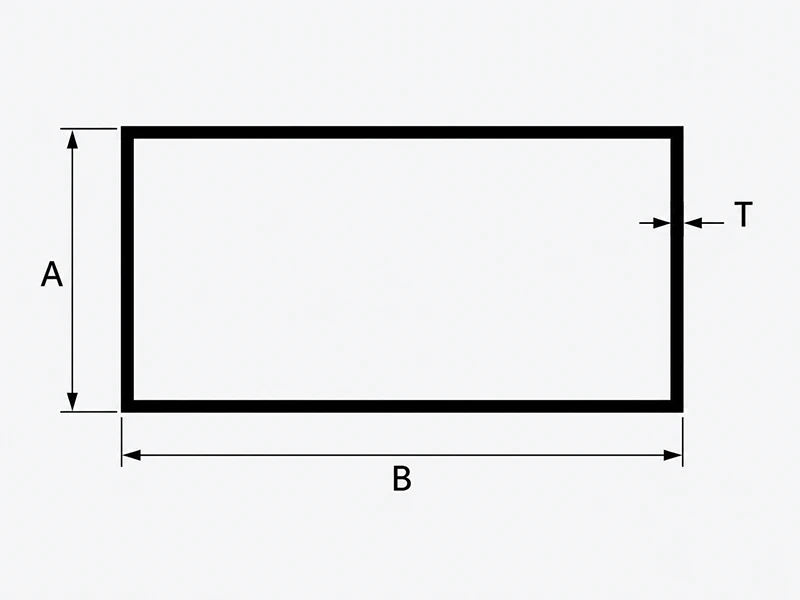

| A (in) | 1.500" (38.100 mm) |
|---|---|
| B (in) | 3.00" (76.200 mm) |
| T (in) | 0.045" (1.143 mm) |
| Weight Ib/ft | 0.467 lb/ft (0.6949726 kg/m) |
| Finish | Anodic, Anodised, Mill Finish, Powder Coated Black, Powder Coated Bronze, Powder Coated White, Wood Grain |
| Size (FT) |
